Our industrial valves Work - Cast Iron Valves

A126 Class B Cast Iron Valves

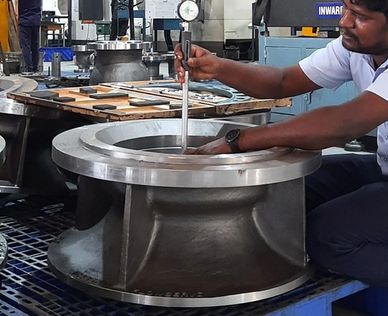

Worker measuring large metal component with precision tool.

Materials:- Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconnel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay

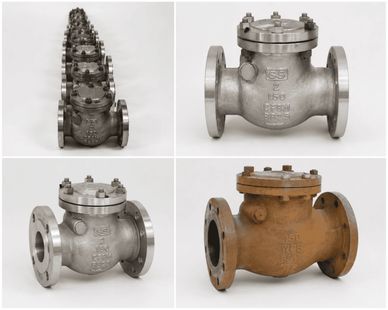

Swing Check Valve

Various metal check valves in different sizes and finishes.

Size:- 40mm to 1000 mm
Pressure Rating:- CLASS 150 to 300, 600 Pn10, PN16
Pressure and temp, ratings:- ASME B16,34 BS1560
Face to face dim:- ASME B16, 10 DIN EN: 558-1
Inspection & Testing API:- 598 BSEN:12266.1
Material of Constructions:- CF8, CF8M, CF3M, CN7M, HastelloyC & all alloys
Lining Nitrite:- EPDM, Silicon, Viton

GLOBE VALVE

Three industrial valves of different sizes inside a warehouse.

Size:- 2” up to 24“ (DN 50 up to DN 600)
Pressure Rating:- ASME 150# to 2500#
Materials:- Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard:- BS 1873, API 623
Pressure / Temperature Rating:- ASME B 16.34
Test (Inspection) Standard:- API 598,ISO 5208,BS 6364
Construction Details:- Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem
End Connection:- Flanged,Butt-Weld

Cast Iron Steam Valves

Four industrial metal valves arranged on the floor.

We manufacture Cast iron steam valves in the compliance with industry laid specifications, using fine quality raw materials.The main function of steam valves is to control the flow and pressure level of steam and heated water vapor.

Cast Steel Globe Valves

Class 150 & Class 300] Also Available with IBR III C Certificate

Cast Steel Globe Valves ( CS Globe Valves ) Manufacturer, Supplier, Exporter from Tiruchirappalli, Tamil Nadu, India.

We have earned a repute of being the most trusted and dependable supplier of the economical and reliable range of Cast Steel Globe Valves. The main function of steam valves is to control the flow and pressure level of steam and heated water vapor.

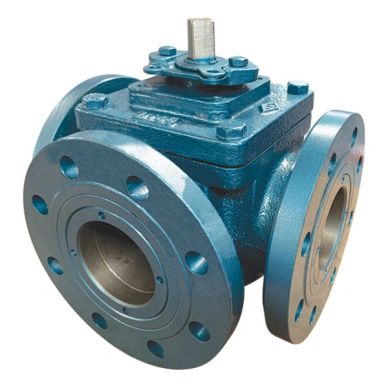

Cast Iron 3 Way Ball Valve – Pneumatically Actuated

Categories: Actuated Packages - Pneumatic, Actuation
LV5510 / 5511 Ball Valve, Flanged PN16, Full Bore, Cast Iron Body, Stainless Steel Ball & Stem, PTFE Seats. L or T Port Options.
Rated PN16, Temperature -10ºC to 120ºC.
Fitted with Pneumatic Actuator.
